Solar water pumping systems are an innovative and eco-friendly solution for drawing water from sources such as wells, rivers, or ponds, and delivering it to where it’s needed. These systems are powered entirely by solar energy, making them ideal for remote areas, agricultural fields, and regions with limited access to electricity. Solar water pumps are highly efficient, cost-effective, and sustainable, providing a reliable water supply for irrigation, livestock, drinking water, and other uses.

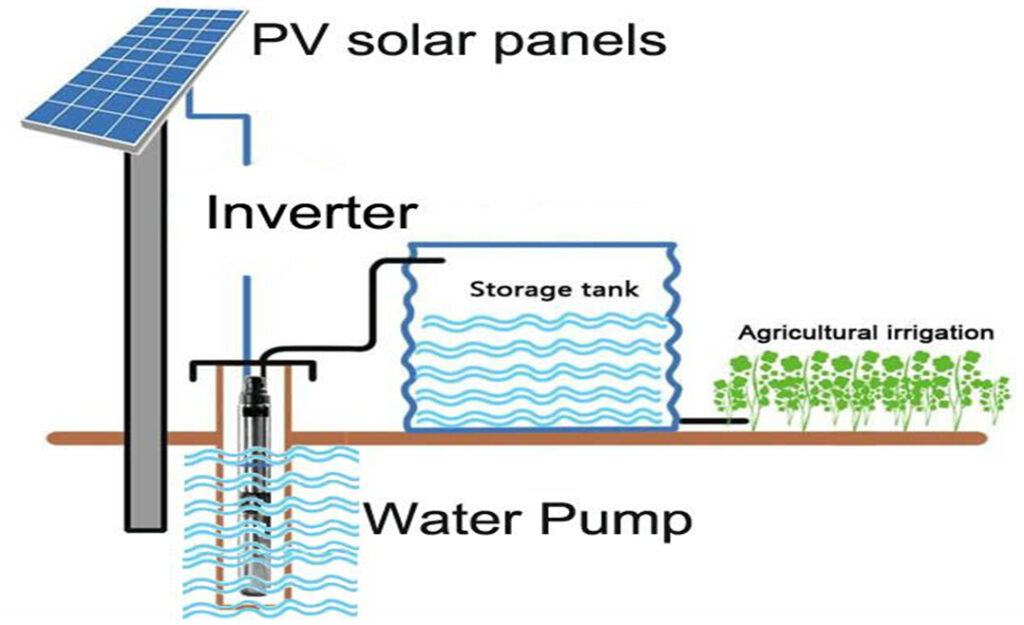

How Solar Water Pumping Systems Work

Solar water pumping systems use solar panels to capture sunlight and convert it into electricity, which powers a water pump. The pump then moves water from the source to the desired location. The systems can be configured to pump water directly during the day or store it in a tank for use when sunlight is not available.

Components of a Solar Water Pumping System

1. Solar Panels:

   • Function: Generate electricity by capturing sunlight and converting it into direct current (DC) power.
   • Types:
     • Monocrystalline Panels: High efficiency and longevity, ideal for maximizing energy production in limited space.
     • Polycrystalline Panels: Slightly lower efficiency but more cost-effective, suitable for larger installations.

2. Pump Controller:

   • Function: Regulates the power supply to the pump, ensuring stable and efficient operation.
   • Features: Protects the pump from electrical issues such as over-voltage, under-voltage, and short-circuiting. Some controllers also include maximum power point tracking (MPPT) to optimize the efficiency of solar energy use.

3. Water Pump:

   • Function: Moves water from the source to the desired location.
   • Types:
     • Surface Pumps: Positioned above ground, ideal for shallow water sources like ponds or rivers.
     • Submersible Pumps: Installed below the water surface, suitable for deep wells and boreholes. These pumps are highly efficient for drawing water from significant depths.
   • DC vs. AC Pumps: Solar pumps can be either direct current (DC) or alternating current (AC) driven. DC pumps are more efficient and directly compatible with solar panels, while AC pumps may require an inverter.

4. Inverter (Optional):

   • Function: Converts DC power generated by the solar panels into AC power if an AC pump is used.
   • Benefit: Allows the use of existing AC pumps in a solar-powered system.

5. Water Storage Tank (Optional):

   • Function: Stores water for use during times when solar energy is not available, such as nighttime or cloudy days.
   • Benefit: Ensures a consistent water supply, reducing reliance on direct sunlight.

6. Piping and Valves:

   • Function: Transport water from the pump to the storage tank or directly to the fields, homes, or livestock.
   • Design Considerations: Proper sizing and materials are crucial to minimize friction loss and ensure efficient water flow.

Benefits of Solar Water Pumping Systems

1. Energy Independence:

   • Off-Grid Operation: Solar water pumps do not require connection to the electrical grid, making them ideal for remote or rural areas with limited infrastructure.
   • Renewable Energy: By using solar power, these systems reduce reliance on fossil fuels, lowering carbon emissions and environmental impact.

2. Cost-Effective:

   • Low Operating Costs: After the initial installation, solar water pumping systems have minimal ongoing costs since they use free solar energy.
   • Long-Term Savings: Reduced fuel or electricity expenses over time lead to significant savings, especially in areas where power costs are high or fuel is scarce.

3. Sustainable Water Management:

   • Reliable Water Supply: Solar pumps provide a dependable water source for agriculture, livestock, and communities, even in areas with unreliable or no access to electricity.
   • Efficient Irrigation: Farmers can optimize water usage for crops, leading to better yields and more sustainable farming practices.

4. Environmental Impact:

   • Eco-Friendly: Solar water pumps produce no greenhouse gases during operation, contributing to a cleaner environment.
   • Minimal Maintenance: With fewer moving parts and durable components, solar pumps require less maintenance, reducing the environmental footprint associated with repair and replacement.

5. Versatile Applications:

   • Agriculture: Used for irrigation, livestock watering, and aquaculture, helping to increase productivity and food security.
   • Domestic Use: Provides clean drinking water and supports household needs in rural and off-grid areas.
   • Community Water Supply: Supports small villages and communities by providing a sustainable and reliable source of water.

Installation and Maintenance

1. Site Assessment:

   • Sunlight Availability: Choose a location for the solar panels that receives maximum sunlight throughout the day, with minimal shading.
   • Water Source Evaluation: Assess the depth and flow rate of the water source to select the appropriate pump type and size.

2. System Sizing:

   • Water Demand: Calculate the daily water requirements to determine the appropriate size of the pump and solar panel array.
   • Pump Selection: Choose between surface and submersible pumps based on the water source’s depth and distance from the delivery point.

3. Professional Installation:

   • Quality Assurance: Engage experienced professionals to ensure proper installation, including secure mounting of solar panels, correct electrical connections, and appropriate pump placement.

4. Regular Maintenance:

   • Cleaning: Periodically clean the solar panels to remove dust, dirt, and debris that can reduce energy production.
   • System Checks: Regularly inspect the pump, controller, and wiring for any signs of wear or malfunction, and replace components as needed.

5. Seasonal Considerations:

   • Winterization: In colder climates, take steps to protect the system from freezing temperatures, such as insulating exposed pipes and ensuring the pump is installed below the frost line.
   • Water Storage: Ensure adequate storage capacity to meet water needs during cloudy days or periods of high demand.
